Daisy-eye single-hole punch – camouflage uniform dedicated
Daisy-eye single-hole punch for down jackets (snap-button ready)
Daisy-eye single-hole punch – waistband eyelet dedicated

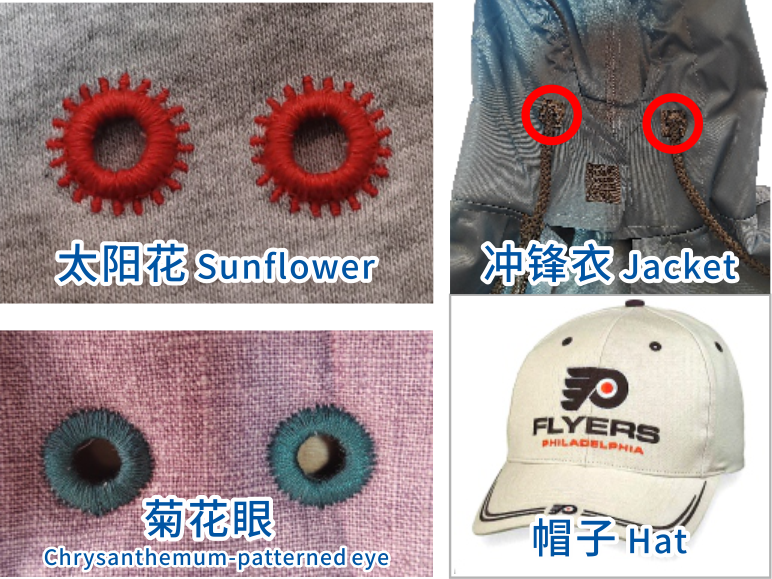

Daisy-eye single-hole punch – sun-flower decorative pattern
Daisy-eye single-hole punch for casual trousers – sun-flower decorative pattern
Daisy-eye single-hole punch – cap/hat dedicated
Daisy-eye single-hole punch, twin-station – cap/hat dedicated
Daisy-eye single-hole punch + bartack convertible head – multi-purpose unit
Daisy-eye single-hole punch for rigid woven bags & heavy-duty belts
Daisy-eye single-hole punch – drawstring eyelet for workout pants
Daisy-eye single-hole punch – drawstring eyelet for athletic pants
Daisy-eye single-hole punch, large bore – knit fabric dedicated
Daisy-eye single-hole punch – knit fabric, large sun-flower decorative eyelet
Daisy-eye single-hole punch – cap ventilation & snap-button reinforcement eyelet
Daisy-eye single-hole punch – home-textile sun-flower decorative eyelet
Daisy-eye single-hole punch – denim sun-flower decorative eyelet
Daisy-eye single-hole punch – mink-coat lining sun-flower decorative eyelet
Daisy-eye single-hole punch – shirt-weight fabric dedicated
Daisy-eye single-hole punch, large bore – outdoor gear dedicated
Daisy-eye single-hole punch, large bore – sofa-cushion dedicated
Daisy-eye single-hole punch, large bore – wool sweater dedicated
Daisy-eye single-hole punch with backing-strip interlining
Daisy-eye single-hole punch – military camo series dedicated

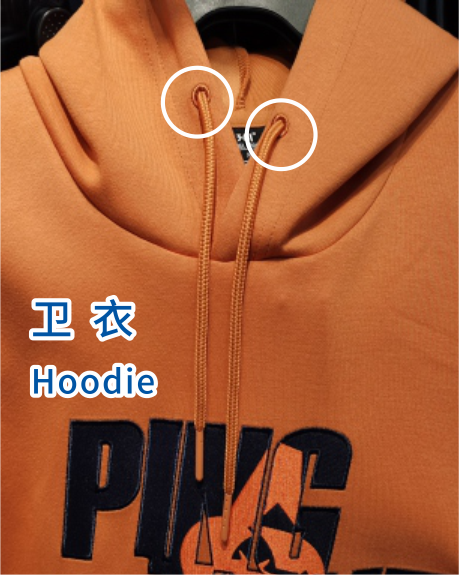

Daisy-eye single-hole punch – 4-ply heavy fleece/hoodie fabric dedicated
Daisy-eye single-hole punch for hard-shell jackets: backing strip first, punch after
Embroidery eyelet with backing paper feeding
Eyelet for down jacket, high stitch density + backing feeding
Double face wool eyelet, anti-fray, tearaway stabilizer
Cap chrysanthemum grommet + feeding interlining

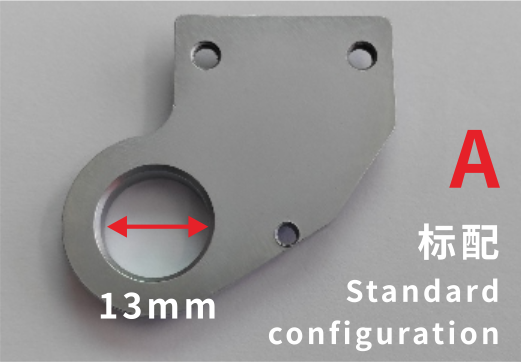

A-12 Standard configuration

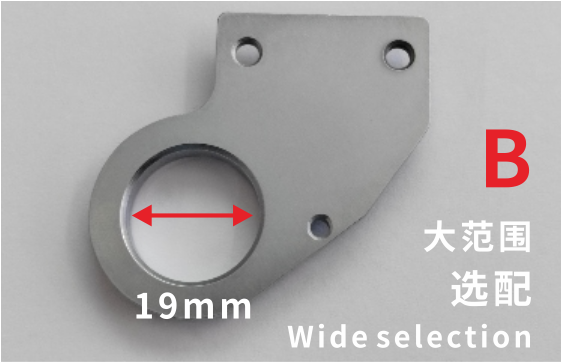

B-17 optional
Optional accessory: Automatic gasket feeding device
1 .Punching and embroidering daisy eyes simultaneously (either punching first then sewing, or sewing first then punching);
2.Replacing the punching die + combining with automatic programming (enabling adjustment of the size and number of stitches of the daisy pattem);
3.Special wire-cut electrical discharge machining (WEDM) process for punching dies (solves theproblems of fabric being unable to be punched through and fabric fraying);

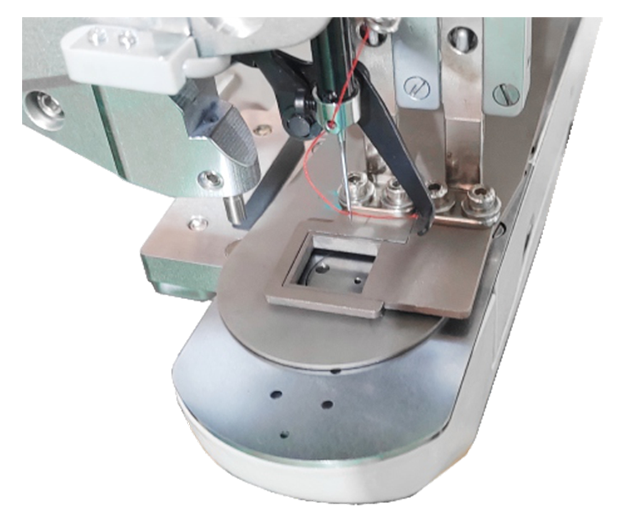

4.Replace the presser foot and fabric support plate to function as a bar tacking machine;
5.Special customized presser feet (solve the problems of uneven fabric, fabric abrasion and pressure marks);
6.Lining feeding device can be added (suitable for hats, elastic fabrics and special processes).
Two specifications of machines
The maximum outer diameter of thechrysanthemumeyeis 13mm
The maximum outer diameter of thechrysanthemumeye is 17mm
MIDDLE WIRE DIE(OPTIONAL)
Different punchingdies can be selected according to the user's process requirements and diferent fabrics.
Three key factors for eyelet punching on jacquard fabric: fabric properties (elasticity & thickness), punching dies, and pattern designs.
For down jacket use, reinforced eyelets for drawcords & snap fasteners
For professional use in down jackets: First mark the positions, then punch the holes

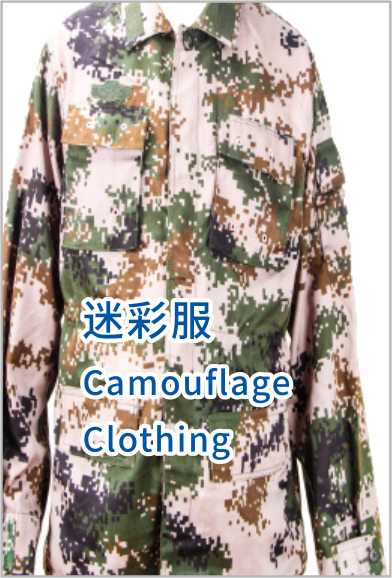

Military series~Camouflage (decorative holes and air holes)

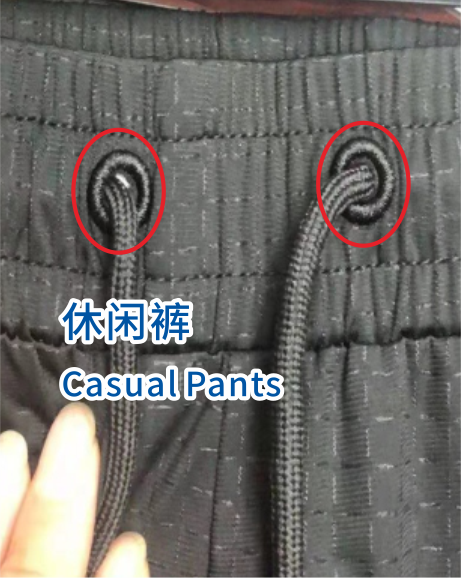

Casual series~All kinds of casual pants (pants with rope hole)
Clothing Series ~All kinds of Clothing (air holes and decorative holes)
Hats series ~All kinds ofhats (decorative holes and air holes)
Shoe Series ~All kinds of casual shoes (shoelace holes, decorative holes and air holes)
Down jacket series ~(To avoid loosening and falling off the four-button,strengthen the seam on the punching part first)

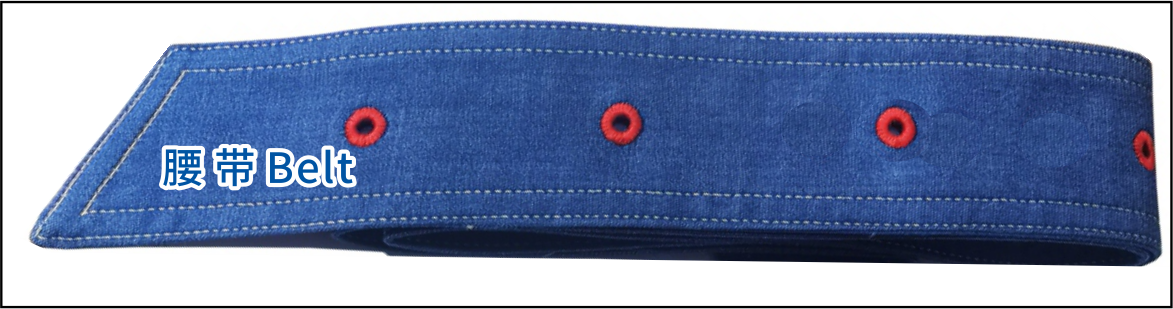

Belt 、Belt hole Chrysanthemum-patterned eyelet
| Model | HF-430E-MO-12 | HF-430E-MO-17 |
| Rotational Speed | 3200 | 3200 |
| Machine Needle | DPX5 11# | DPX5 11# |
| Lightweight Material | ★ | ★ |
| Medium-weight Material | ★ | ★ |
| Heavyweight Material | ★ | ★ |
| Thread Trimming | ★ | ★ |
| Packaging Dimensions | 695x435x535mm | 695x435x535mm |
| Weight | 80/85kg | 80/85kg |
