HF-430E-YW
High-Speed Electronic Rope Knotting Machine

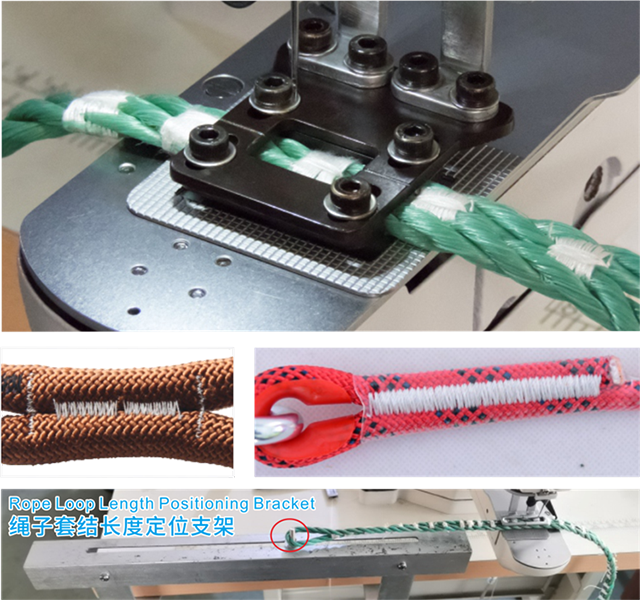

bar-tack over rope edge on fishing net webbing

pet-leash bartack

bartack reinforcement on traction strap

Rope bartack with pre-positioning

Large-area rope-bartack on CNC pattern machine—multi-position, programmable 30–120 mm bartacks, auto feeding & cutting

CNC pattern machine for bartacking thick & stiff ropes Ø8–16 mm, with high-torque servo, 38 mm needle-bar stroke and reinforced feed

Product advantages

1.Adopts imported high-quality spare parts (low noise, durability, product value retention)

2.Machine with large connecting rod, gear and oil-sealed case structure (wear resistance)
3.Equipped with the most stable computer control system (programmable)
4.Custom rope presser foot: suitable for both loop tying and rope wrapping
5.High-power motor with strong penetration capability

6.Optional imported large hook shuttle (with large thread capacity)

7.Rope diameter ≤ 1.2cm, X-loop s 4cm


Application field

Fishing net 、Pet leash 、Safety rope 、Outdoor climbing rope



Customization field



Set machine pattern press foot



Specifications
ModelHF-430E-YW
Rotational Speed3200
Machine NeedleDPx17 16-23#
Lightweight Material
Medium-weight Material
Heavyweight Material
Thread Trimming
Packaging Dimensions695x435x535mm
Weight75/80kg
