HF-430E-ZSOT
High-Speed Automatic Liner Patch Bartacking Machine (Integrated Punching & Feeding)

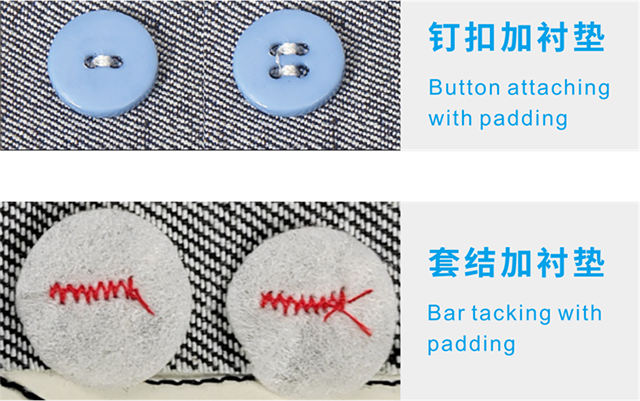

bartack with backing strip

Product advantages

1.Adopts imported high-quality spare parts (low noise, durability, product value retention)

2.Machine with large connecting rod, gear and oil-sealed case structure (wear resistance)
3.While sewing bar tacks (for button attaching), synchronously punch holes and feed interliningwashers (traditional craft: manually placing interlining washers)
4.integrated hole punching and washer feeding, with an ultra-small left-right range for easy bartack sewing

5.Bar tack washer specification: Diameter 2cm (optional: 1.5cm/3cm)
6.Button attaching washer specification: Diameter 1.2cm


Application field

Children's pant            Women's pants

Jeans                               Casual pants



Customization field



Set machine pattern press foot



Specifications
ModelHF-430E-ZSOT
Rotational Speed3200
Machine NeedleDPx5 11-16#
Lightweight Material
Medium-weight Material
Heavyweight Material
Thread Trimming
Packaging Dimensions1200x780x1390mm
Weight65/70kg
